Главная страница > Продукция> Регулятор ECU> 521-8373 Controller ECU for A6E4 Engine

521-8373 Controller ECU for A6E4 Engine

Основная информация

Место происхождения:	Китай
Фирменное наименование:	Jiajue
Номер модели:	А6Е4

Количество мин заказа:	1 шт.
Цена:	$700/pc
Упаковывая детали:	521-8373 ЭБУ контроллера для двигателя A6E4 упакован в стандартную экспортную упаковку по требованию
Время доставки:	1-5 рабочих дней
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, Вестерн Юнион,
Поставка способности:	100 шт/месяц

Лучшая цена Контакт

Подробная информация

Название продукта:	521-8373 ЭБУ контроллера двигателя A6E4	Материал:	Сталь
Место происхождения:	Гуандун, Китай	минимальный заказ:	1
OEM:	Поддерживать
Выделить:	521-8373 ECU Controller for A6E4 Engine , A6E4 Engine ECU Controller , ECU Controller with warranty

Характер продукции

521-8373 Controller ECU for A6E4 Engine

High-performance Engine Control Unit designed specifically for A6E4 engines, ensuring optimal performance and reliability.

Product Specifications

Product Name	Controller ECU
Part Number	521-8373
Brand Name	JIAJUE
Model	A6E4
Condition	New
Availability	Rich Stock
Approximate Weight	2KG
Size (per unit)	30cm x 20cm x 8cm
Delivery Time	Usually delivered within 1-3 days after payment

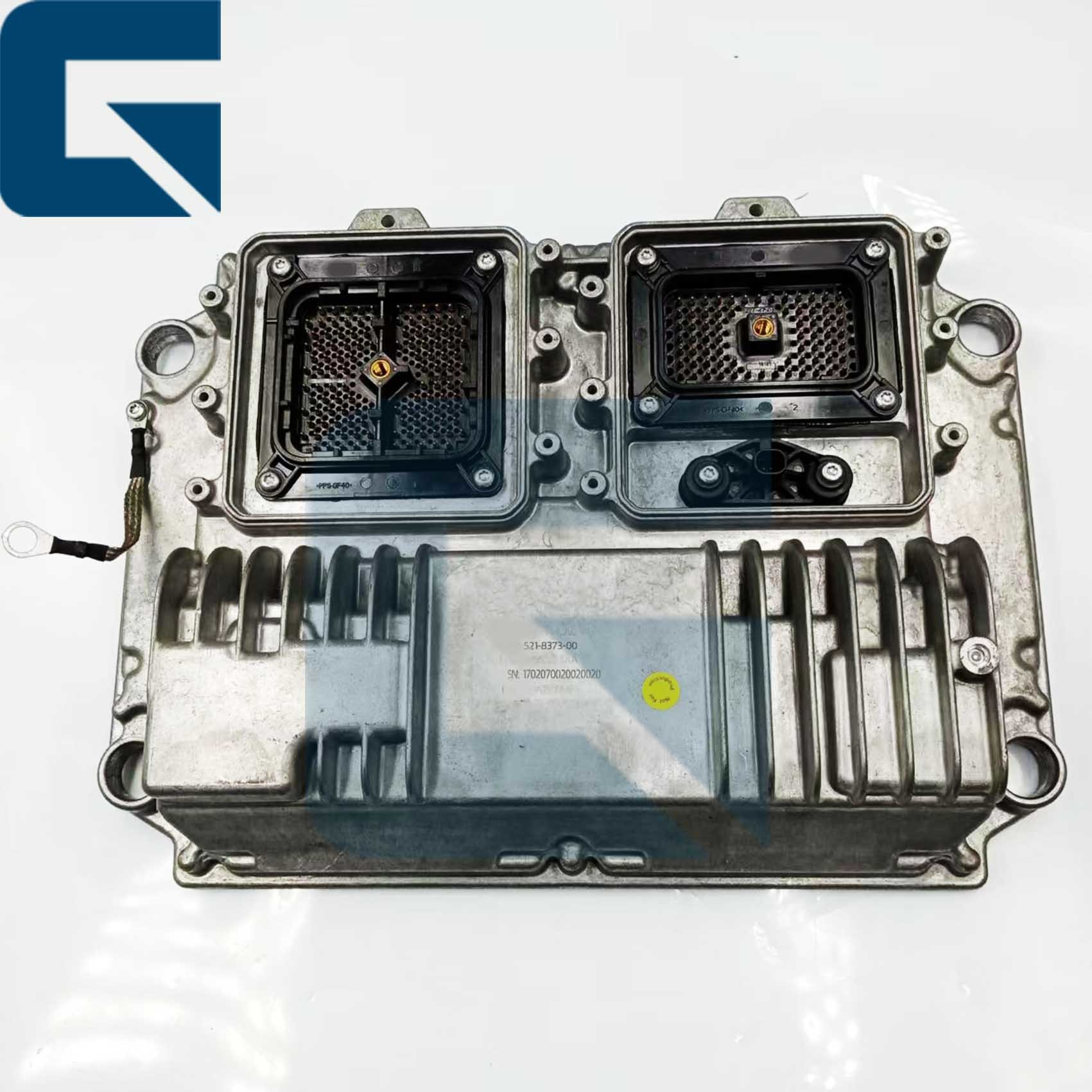

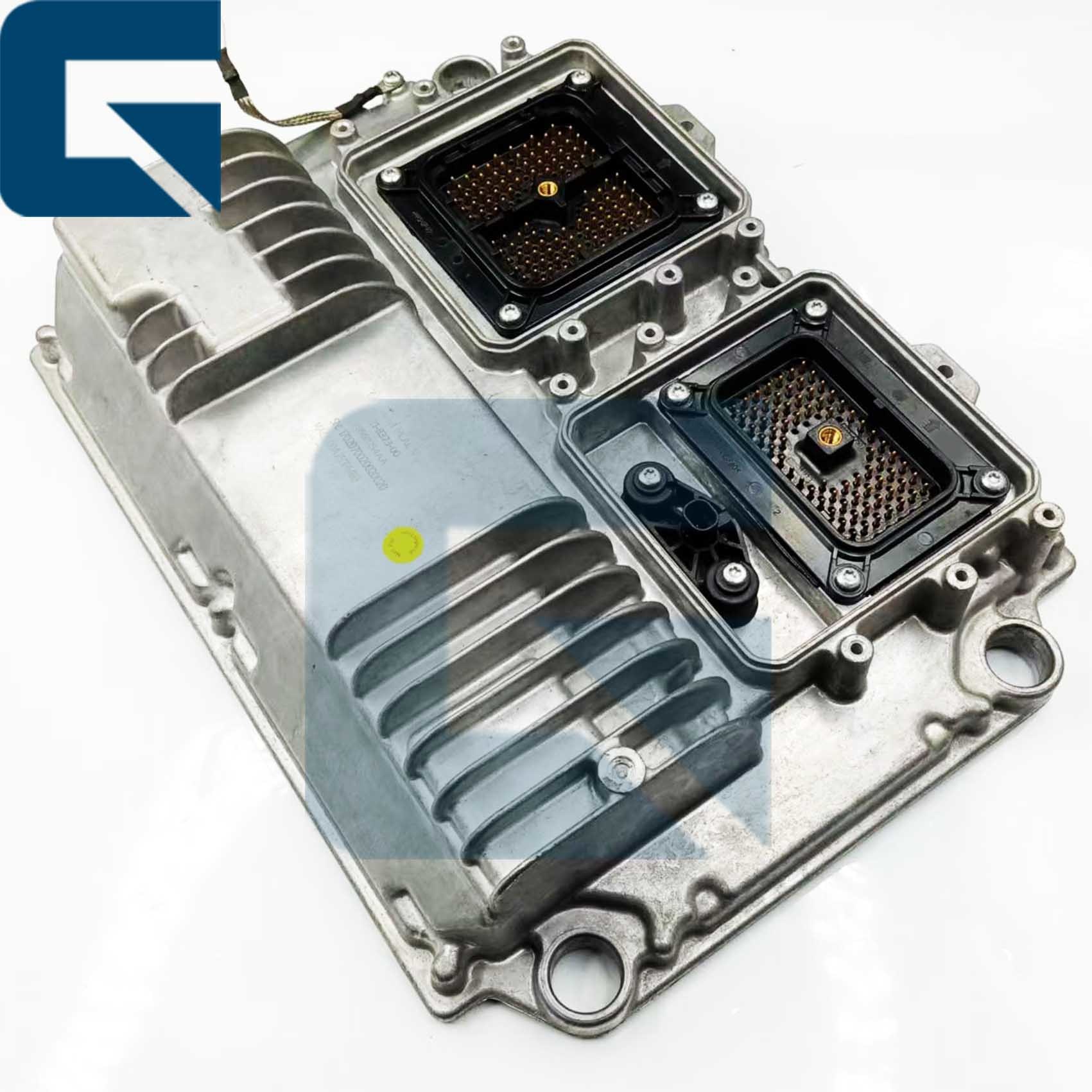

Product Images

Frequently Asked Questions

Q1: How long does it take to install the ECM on machine?

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
Programming & Testing: 30-60 minutes.

If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

Q2: How to determine if the ECM is faulty and needs replacement?

The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Q3: What's your payment method?

Our payment methods include T/T, L/C, PayPal, etc.

Q4: Do you have stock?

Rich stock available.

Q5: How can I know my order is already shipping?

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
Inspect: Check the ECU for physical damage or loose connections.
Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
Document: Keep a record of all tests, codes, and results for future reference.

Quick Checklist for Buyers

Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
