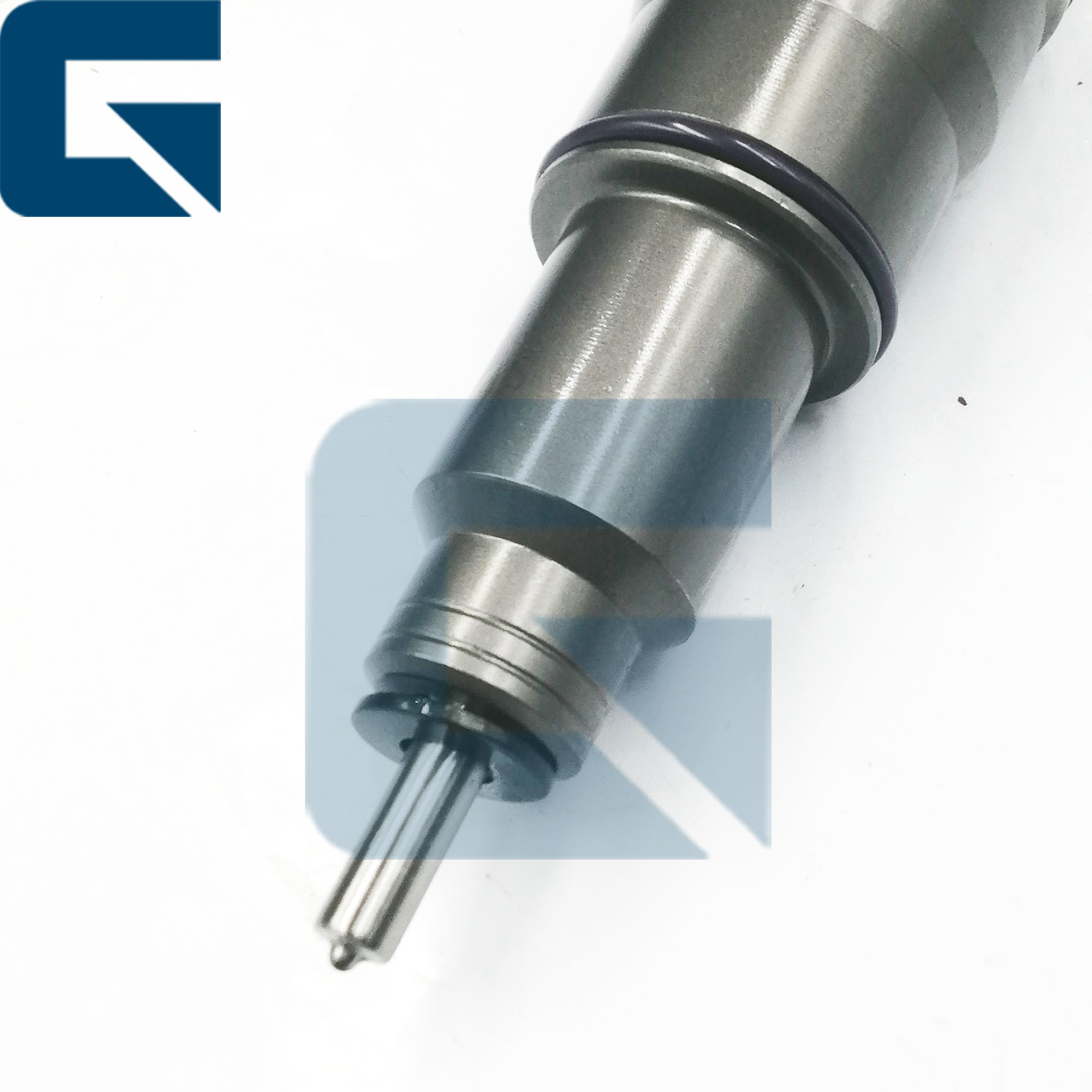

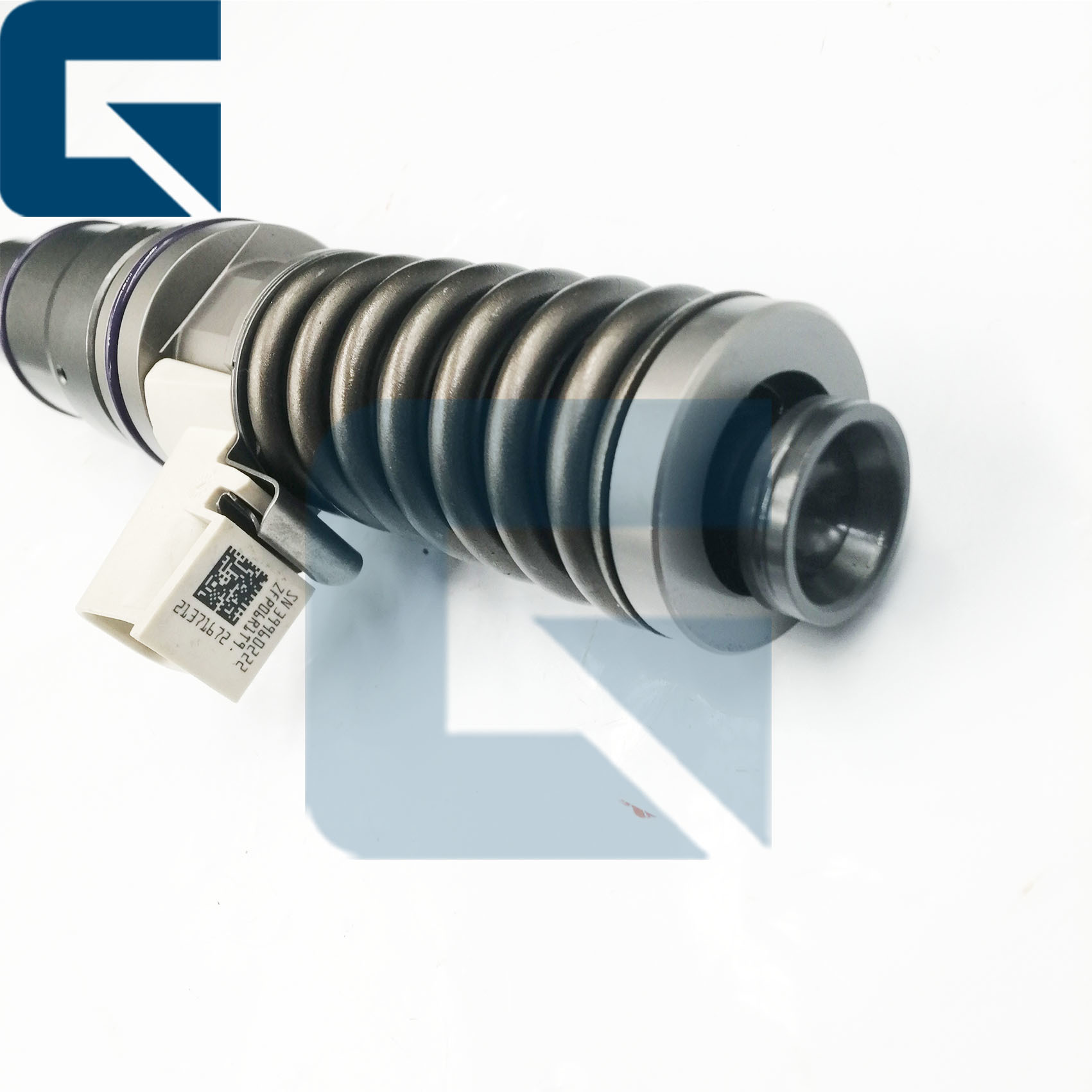

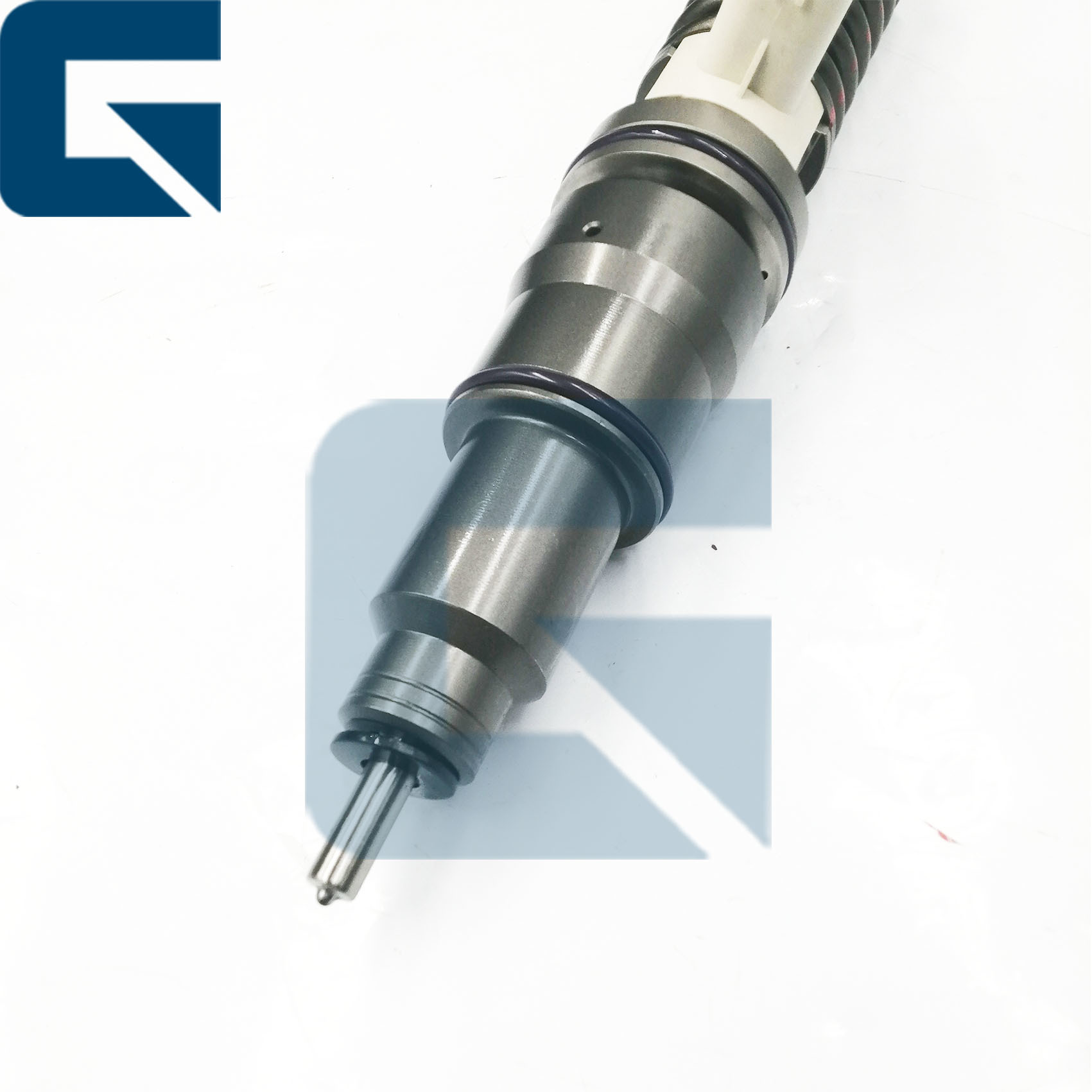

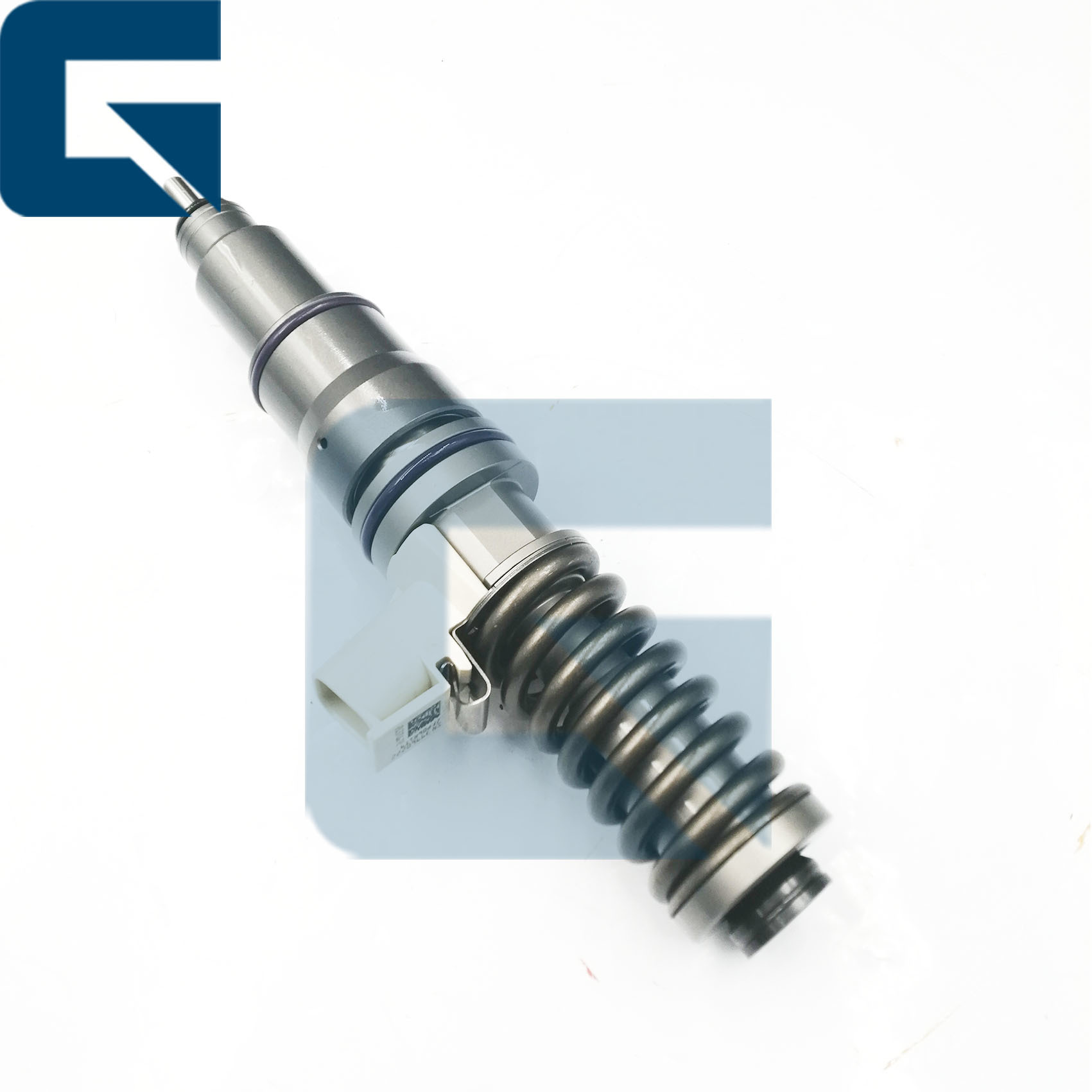

21371672 Fuel Injector for EC380D Excavator

Основная информация

Место происхождения:	Китай
Фирменное наименование:	Jiajue
Номер модели:	EC380D

Количество мин заказа:	1 шт.
Цена:	$180/pc
Упаковывая детали:	21371672 Топливная форсунка для двигателя EC380D упакована в стандартную экспортную упаковку по треб
Время доставки:	1-5 рабочих дней
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, Вестерн Юнион,
Поставка способности:	100 шт/месяц

Лучшая цена Контакт

Подробная информация

Название продукта:	21371672 Топливная форсунка для двигателя EC380D	Материал:	Сталь
Место происхождения:	Гуандун, Китай	минимальный заказ:	1
OEM:	Поддерживать
Выделить:	Fuel injector for EC380D excavator , Diesel fuel injector with warranty , Excavator fuel injector replacement part

Характер продукции

Product Overview

21371672 Fuel Injector for EC380D Excavator - High-performance replacement injector designed for optimal engine performance and fuel efficiency.

Product Specifications

Product Name	Fuel Injector
Part Number	21371672
Engine Model	EC380D
Type	Engine Parts
Place of Origin	GUANGZHOU
Brand Name	JIAJUE
MOQ	1 Piece
Condition	Used
Availability	Rich Stock
Approximate Weight	1KG
Size (per piece)	20cm x 5cm x 8cm
Warranty	3 Months
Shipment	Dispatched within 3 days

Product Images

Related Products

Frequently Asked Questions

How do I install my fuel injector after purchasing it?

Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.

What precautions should I take before installing my fuel injector?

The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.

Why is my engine still unusable after replacing the fuel injector?

This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.

Is my device compatible with this part number of fuel injectors?

If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.

How to determine if your fuel injectors need replacing?

Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.

How long will it take to receive my package after payment?

Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.

Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
Lubrication: Apply clean engine oil to the three O-rings and backup rings. Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.

Troubleshooting Guide

Issue	Root Cause	Solution
Black Smoke	Poor spray atomization or stuck needle valve causing dripping	Inspect the air filter
Hard Start	Internal leakage in the injector leading to insufficient starting oil pressure	Inspect the injector O-rings and internal seals
Engine Misfire	Faulty solenoid valve coil or worn internal valve components	Inspect wiring harness connections and replace damaged injectors
