7823-30-9212 7823309212 Monitor Display Control Panel Monitor for WA380-6 WA470-6 Wheel Loader

Основная информация

Место происхождения:	Китай
Фирменное наименование:	JIAJUE
Номер модели:	WA380-6 WA470-6

Количество мин заказа:	1
Цена:	Please send mail or WhatsApp
Упаковывая детали:	7823-30-9212 7823309212 Монитор Дисплей Панель управления Монитор для колесного погрузчика WA380-6 W
Время доставки:	1 рабочий день
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, Вестерн Юнион,
Поставка способности:	1000 шт/месяц

Лучшая цена Контакт

Подробная информация

Номер детали:

7823-30-9212

минимальный заказ:

Выделить:

WA380-6 wheel loader monitor

WA470-6 display control panel

excavator monitor with warranty

Характер продукции

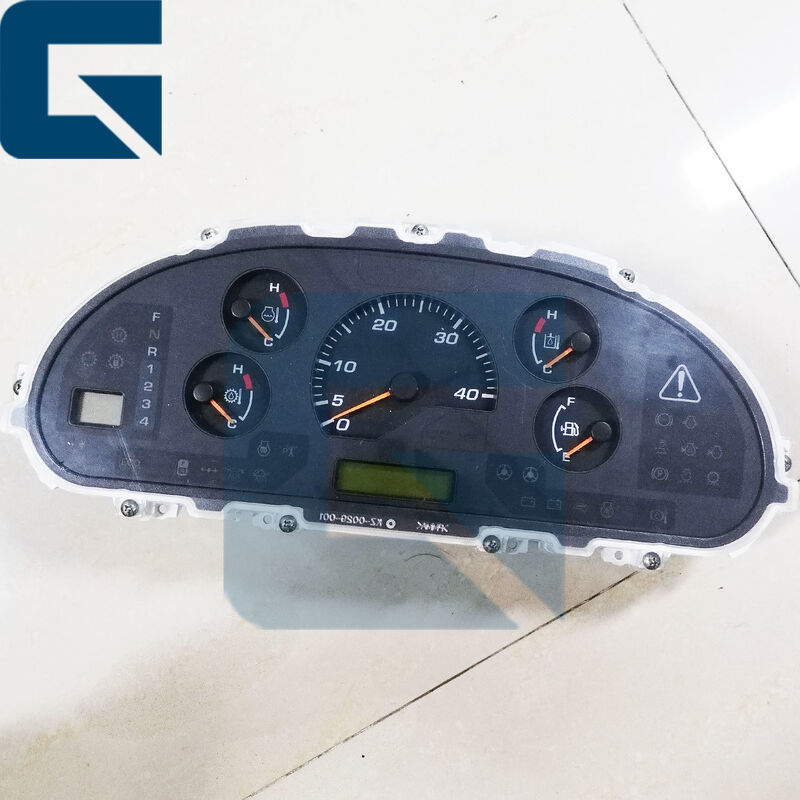

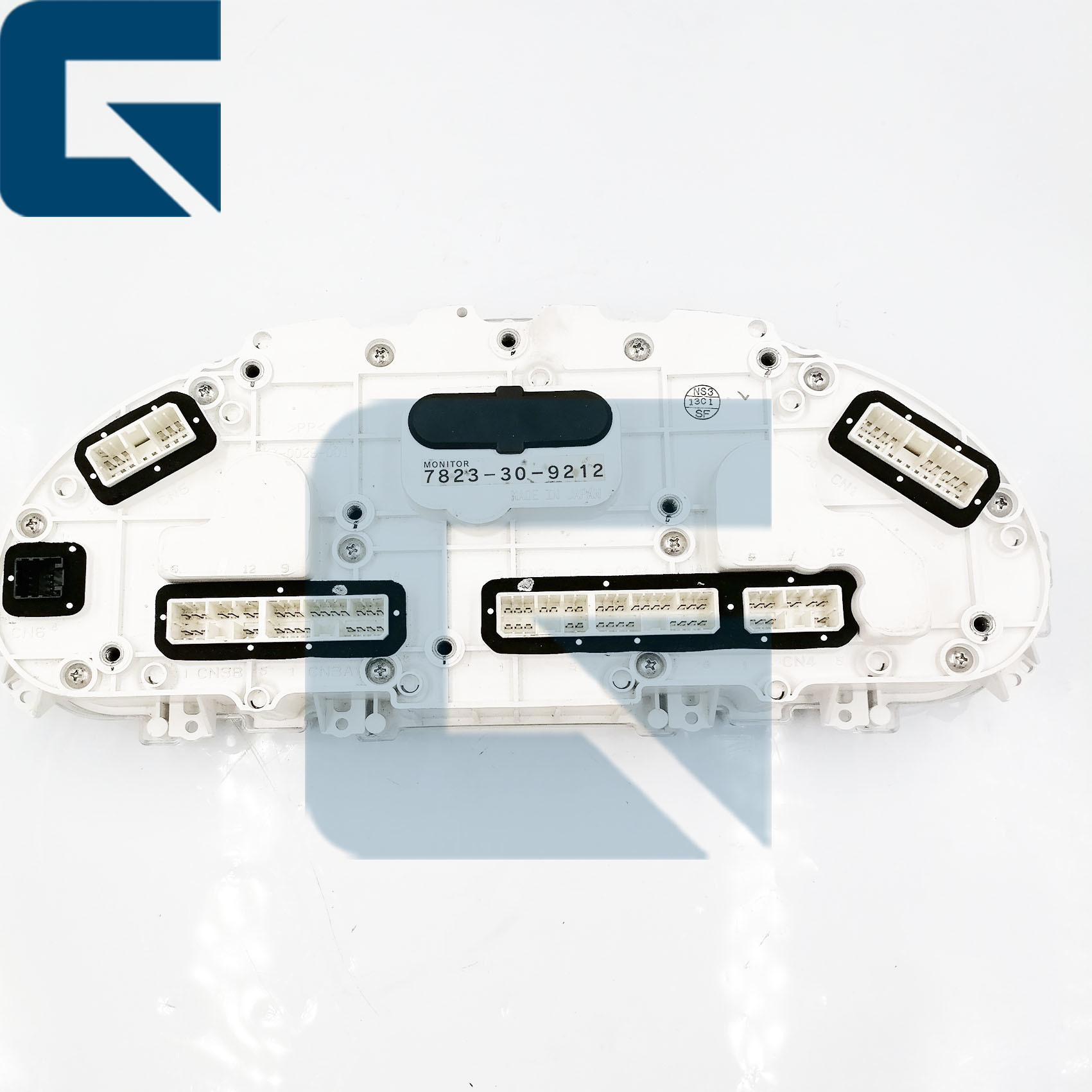

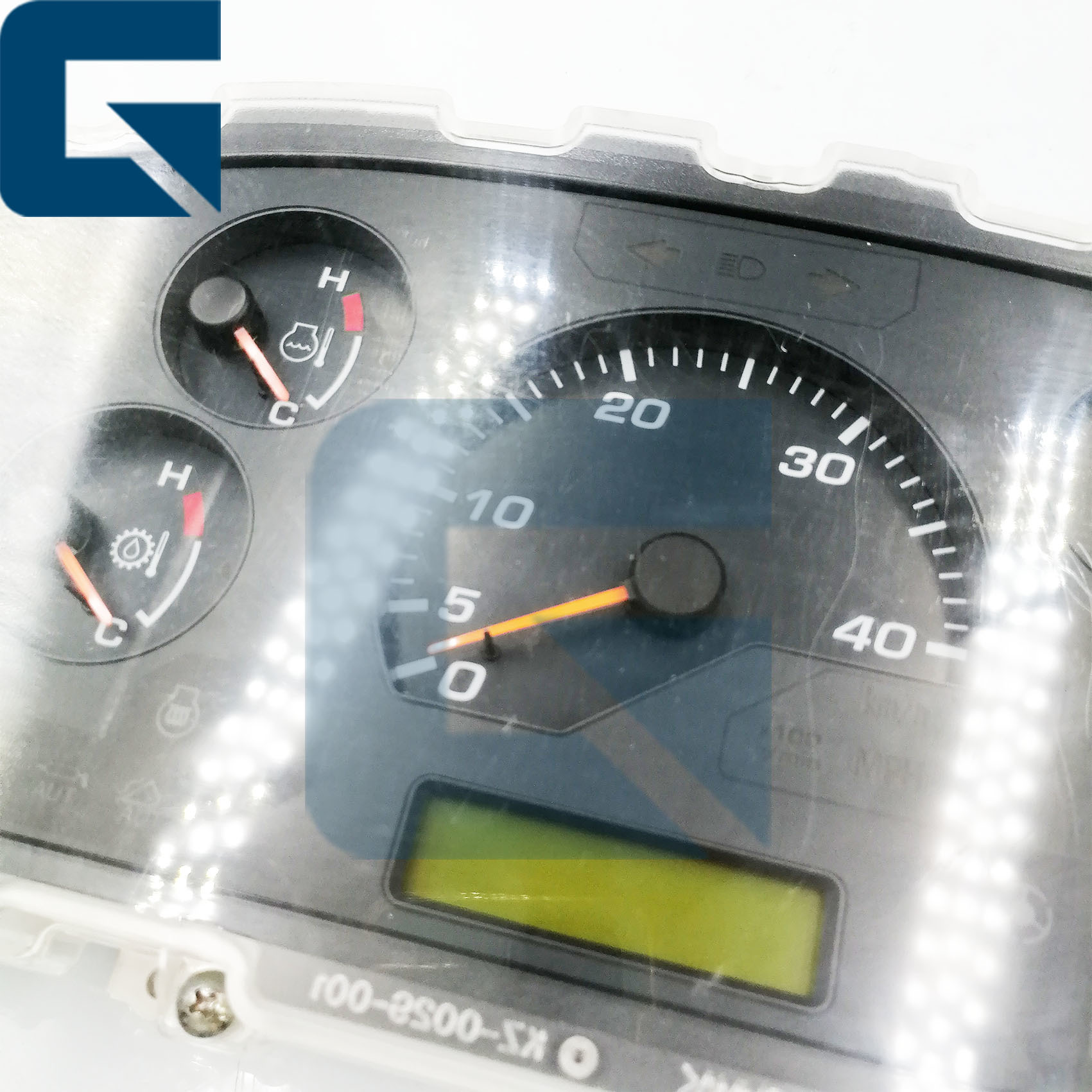

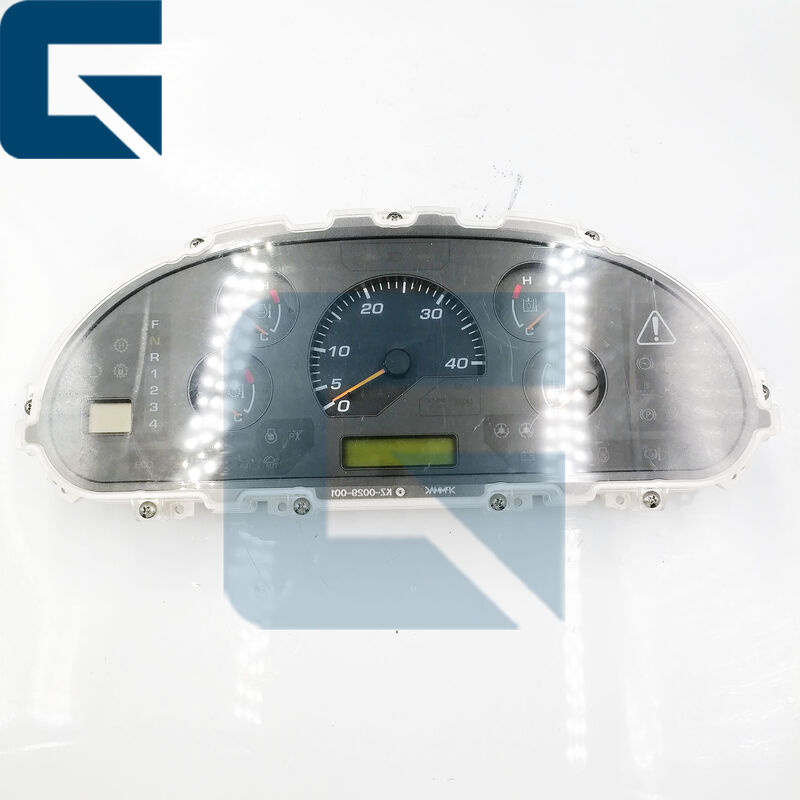

7823-30-9212 Monitor Display Control Panel for WA380-6 WA470-6 Wheel Loader

Product Overview

This 7823-30-9212 monitor display control panel is designed for WA380-6 and WA470-6 wheel loader models. Also compatible with 336-8940 monitor display for 730C and 735B excavator models.

Product Specifications

Product Name	Monitor Display Control Panel
Part Number	7823-30-9212 / 7823309212
Brand Name	JIAJUE
Compatible Models	WA380-6 WA470-6
Condition	Original Use
Approximate Weight	2KG
Size (per unit)	40cm x 30cm x 10cm

Ordering & Shipping

Availability	Rich Stock
Delivery Time	Usually 1-3 days after payment
Delivery Methods	DHL, FedEx, TNT, UPS
Shipment Dispatch	Within 24-48 hours
Payment Methods	TT, Western Union, Credit Card, PayPal

Product Images

Related Products

Frequently Asked Questions

Q1: What are the steps for installing monitor?

Disconnect power → Anti-static protection → Cleaning and inspection → Wiring harness connection → Secure installation → System configuration and debugging → Routine maintenance and cleaning, avoid moisture.

Q2: What does "compatibility" mean in the context of monitor?

The "compatibility" of excavator monitors mainly refers to two dimensions: hardware universality and software platformization.

Q3: What should we do when monitor is black or displays nothing?

Monitor not powered on or power cord loose → Check if the monitor power cord is properly connected and ensure the power is on.
Monitor hardware malfunction → Consider replacing or repairing the monitor.

Q4: When the monitor malfunctions, will the seller resolve the issue?

Yes, customers provide pictures and videos, and our technicians will determine the problem and then help you solve it.

Q5: Why choose Guangzhou Jiajue Company?

Because our monitors are tested before shipment to ensure they can work properly after installation.

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

1. Power On

Ensure the excavator's main power is turned on.

2. Visual Inspection

Check the monitor for physical damage, such as cracks or non-functional buttons.

3. Check Display

Verify that the monitor screen lights up and displays information clearly without distortion or flickering.

4. Test Functionality

Check if all buttons and touchscreen functions (if applicable) respond correctly to inputs.
Navigate through different menus and settings to ensure the monitor controls all essential functions of the excavator.

5. Connection Test

If the monitor interfaces with other systems (e.g., cameras, sensors), ensure these connections are secure and operational.
Test any integrated features like audio output or external video inputs if present.

6. Brightness and Contrast

Adjust brightness and contrast settings to ensure they function properly and provide adequate visibility in different lighting conditions.

7. Document Findings

Record any issues observed during testing and note if the monitor requires further attention or replacement.

8. Consultation

If the monitor displays persistent issues or malfunctions, consult with a qualified technician or the manufacturer's support team for guidance on repairs or replacement.

By following these steps, you can effectively test the monitor of an excavator to ensure it is functioning correctly and contributing to safe and efficient operations.
